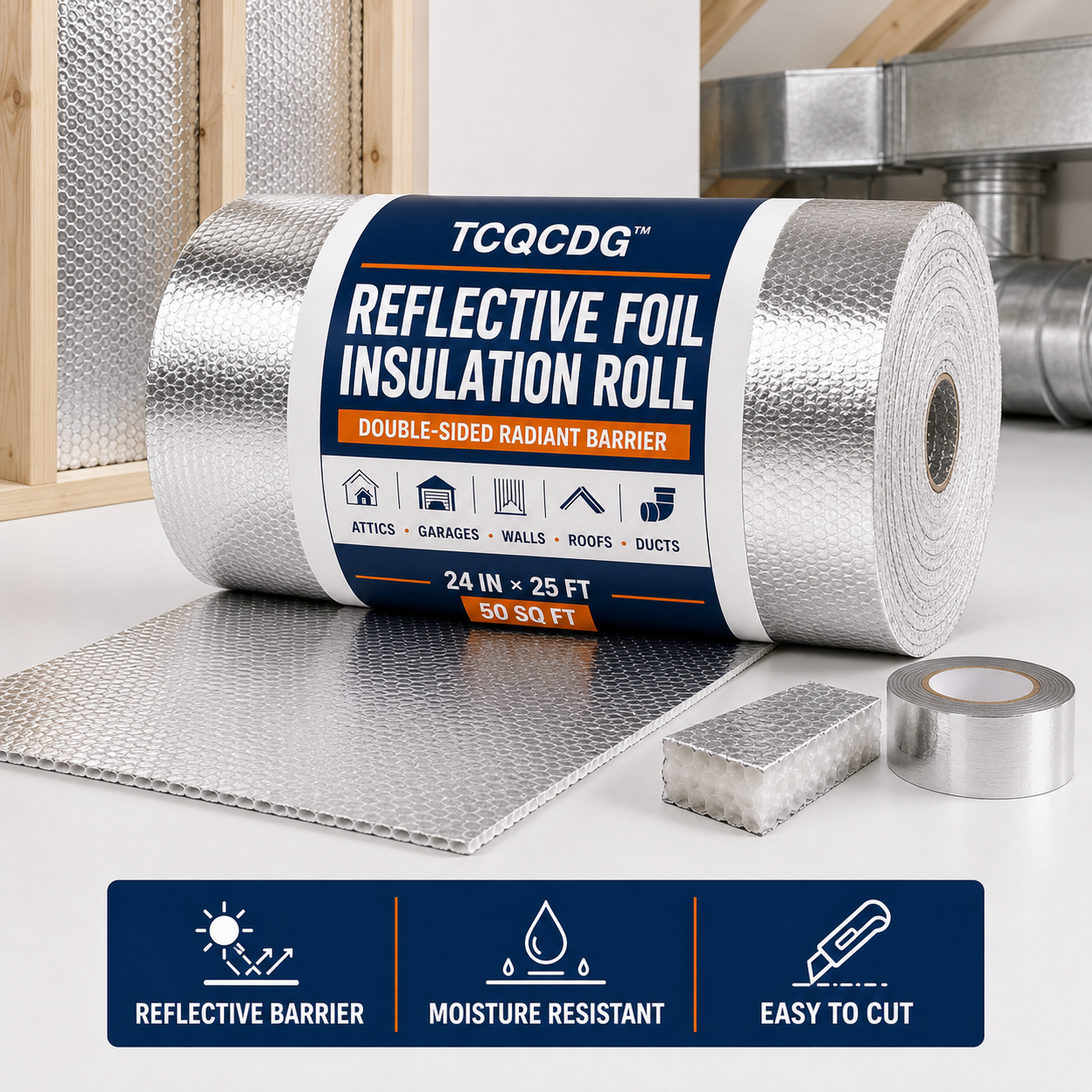

TCQCDG™ Reflective Foil Insulation Roll – Double-Sided Radiant Barrier for Attics, Garages, Walls, Roofs, Metal Buildings & HVAC Ducts
TCQCDG™ Reflective Foil Insulation Roll – Double-Sided Radiant Barrier for Attics, Garages, Walls, Roofs, Metal Buildings & HVAC Ducts
Improve temperature control and reduce radiant heat transfer with TCQCDG™ Reflective Foil Insulation Roll—a lightweight, flexible insulation material designed for residential, commercial, agricultural, and DIY building projects.
The insulation combines two reflective foil surfaces with a closed-cell insulating core. When installed correctly with an adjacent air space, the reflective layers help redirect radiant heat instead of allowing it to pass directly into the protected area. This can help reduce heat gain during hot weather and limit heat loss during colder conditions.
Unlike traditional fiberglass insulation, the material contains no loose glass fibers and is easy to cut, handle, and install. Its non-absorbent surface also helps resist moisture, making it suitable for attics, garages, workshops, metal buildings, wall systems, roofs, ductwork, pipes, and other properly ventilated spaces.
Key Benefits
- Helps reduce radiant heat transfer
- Double-sided reflective foil construction
- Supports more comfortable indoor temperatures
- Helps reduce summer heat gain and winter heat loss
- Lightweight, flexible, and easy to cut
- Contains no loose fiberglass particles
- Non-absorbent surface helps resist moisture
- Suitable for new construction and renovation projects
- Can be installed using staples, insulation tape, or suitable fasteners
- Useful as supplemental insulation in multiple building applications
Recommended Applications
Suitable for properly designed and ventilated:
- Residential attics
- Garage doors and garage walls
- Workshops and storage buildings
- Metal roofs and metal buildings
- Interior wall and ceiling systems
- Pole barns and agricultural structures
- Crawl spaces and basements
- HVAC ducts and ventilation systems
- Water pipes and selected equipment surfaces
- Sheds, trailers, and utility structures
How It Works
Most traditional insulation materials are designed to slow conductive heat transfer. TCQCDG™ Reflective Foil Insulation Roll is primarily designed to reduce radiant heat transfer.
For the reflective surface to perform effectively, it should face an appropriate air space rather than being pressed directly between two solid materials. Installation method, air-gap size, climate, building design, and surrounding materials can all affect overall performance.
Installation Instructions
- Measure the installation area before cutting the insulation.
- Make sure the surface is clean, dry, and free from sharp objects.
- Cut the insulation to the required size using scissors or a utility knife.
- Position the reflective surface so that it faces the intended air space.
- Attach the insulation using staples, approved adhesive, or suitable fasteners.
- Overlap or tightly join adjoining sections.
- Seal seams and edges using compatible reflective insulation tape.
- Seal openings around pipes, vents, and framing members when appropriate.
- Inspect the installation for gaps, tears, and unsecured edges.
- Follow applicable building codes before covering or enclosing the material.
Important Installation Notes
This product is designed primarily as a radiant barrier and supplemental insulation material. It should not automatically be treated as a replacement for code-required fiberglass, mineral wool, spray foam, or rigid-board insulation.
Thermal performance depends on the installation method and the presence of an adjacent air space. Do not advertise or assign a specific R-value unless that value has been verified through testing for the exact product and installation configuration.
Safety Information
Wear suitable gloves and protective eyewear when cutting or installing construction materials. Keep the insulation away from open flames, chimneys, fireplaces, recessed lighting, heating elements, and other high-temperature surfaces.
Do not cover electrical panels, damaged wiring, ventilation openings, or equipment that requires airflow. The product should not be described as fireproof or used as a fire barrier unless it has the appropriate verified fire-performance certification.
Always follow local building codes and consult a qualified professional when installing insulation in regulated, concealed, or fire-sensitive assemblies.
